PP-PUNCH-MG

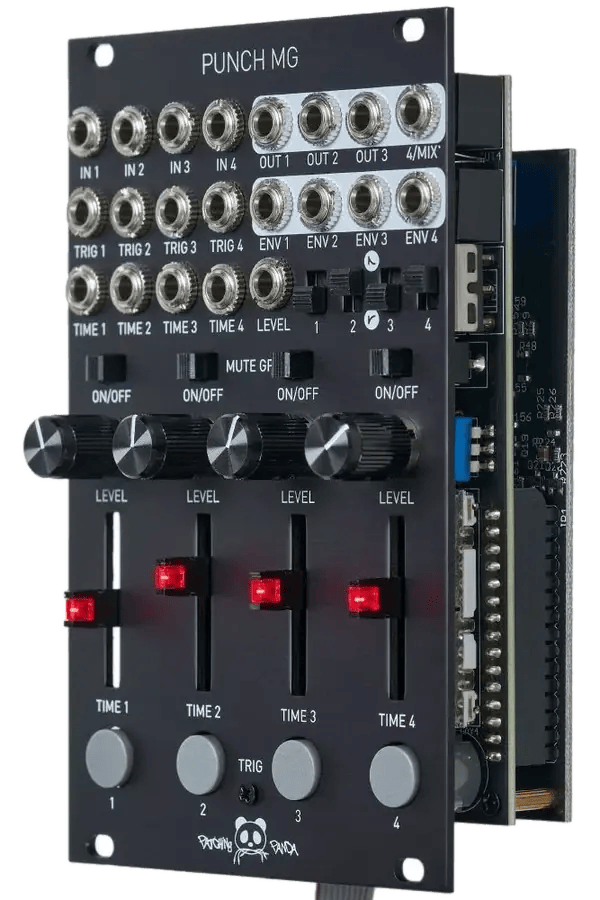

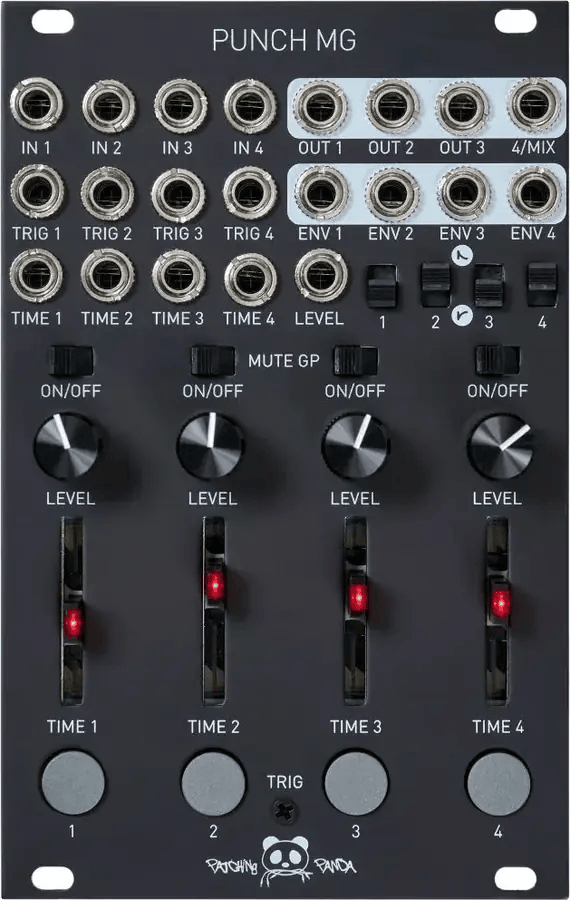

Punch MG

A VCA-decay module built around mute groups, trigger several channels together and Punch MG decides who ducks, who holds, and how the resulting pattern shifts with every group hit.

Punch MG’s four VCA-decay channels can be linked into a mute group, so triggering more than one at once doesn’t just stack them, the module can duck or amplitude-limit the others, and let the group interaction itself shape decay and level from one hit to the next, so the same input pattern doesn’t play back identically twice.

Two units link together to expand the group to eight signals, each channel’s envelope output can be inverted from the front panel for side-chain and ducking work outside the mute group itself, and an audio-rate signal into the level input opens up amplitude modulation beyond straightforward triggering.

Decay and mute groups, working together.

01

4-channel VCA-decay with mute groups

Four independent VCA-decay channels that can be linked into a mute group, so simultaneous triggers duck or amplitude-limit each other instead of simply stacking.

02

Group-driven variation

The mute group’s own interaction feeds back into amplitude and decay, so a repeated trigger pattern keeps shifting instead of looping identically.

03

Expandable & side-chain ready

Link two units for an 8-signal group, invert any channel’s envelope output from the front panel, and drive level with an audio-rate signal for AM or ducking.

Specifications

Width
16 HP
Power, +12V
215 mA
Power, −12V
185 mA

Manual and documentation.

User manual
PDF, Punch-MG_manual.pdf

Download →

See it in action

Demos and walkthroughs.

Punch MG
Patching Panda

Punch MG FX-Rhythm
Patching Panda

A fresh take on the classic VCA; Patching Panda Punch MG. What are Mute Groups?
SynthDad

Rambling About: Patching Panda Punch MG with tafony
tafony

Find a dealer near you.

Punch MG is sold through Patching Panda’s dealer network rather than direct from the site.

See dealers →
