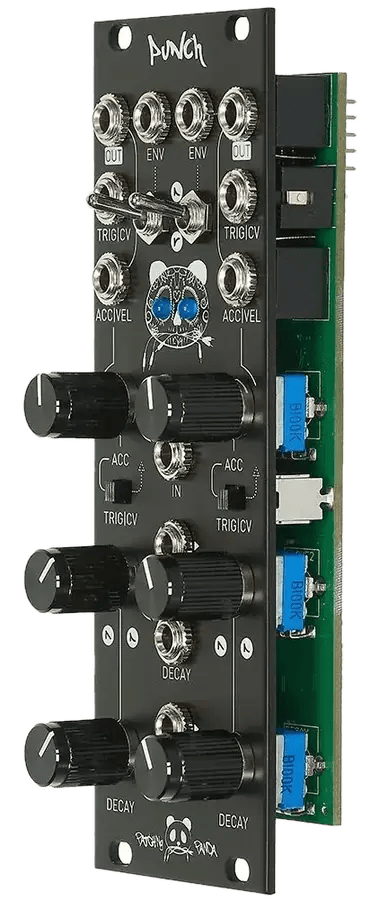

PUNCH

Punch is the ultimate VCA-DECAY module for Eurorack

– Specially   designed  to  generate  dynamic  percussive  sounds   but also capable  of  basslines,  leads, envelopes and more. The VCA has a built in voltage controlled Decay envelope that can be turned from smooth to more aggressive exponential responses and can be activated with triggers, gates or cv’s.

Punch  features  two  modes  per  channel  to play, with a dedicated switch control: “vintage style drum machine mode” and “dynamic cv mode”

Punch is capable of creating AM sounds with control voltage on the “amount”

Each envelope can be inverted via dedicated switches on the front panel.

If you use an inverted envelope alongside the accent input you can create ducking effects like side-chain compression..

INSTALLATION:
* Disconnect your synth from the power source.
* Double check polarity from the ribbon cable, unfortanetly if you damage the module by powering in the wrong direction it will not be covered by the warranty.
* After connecting the module check again you have connected the right way, the red line should be on the -12V.
