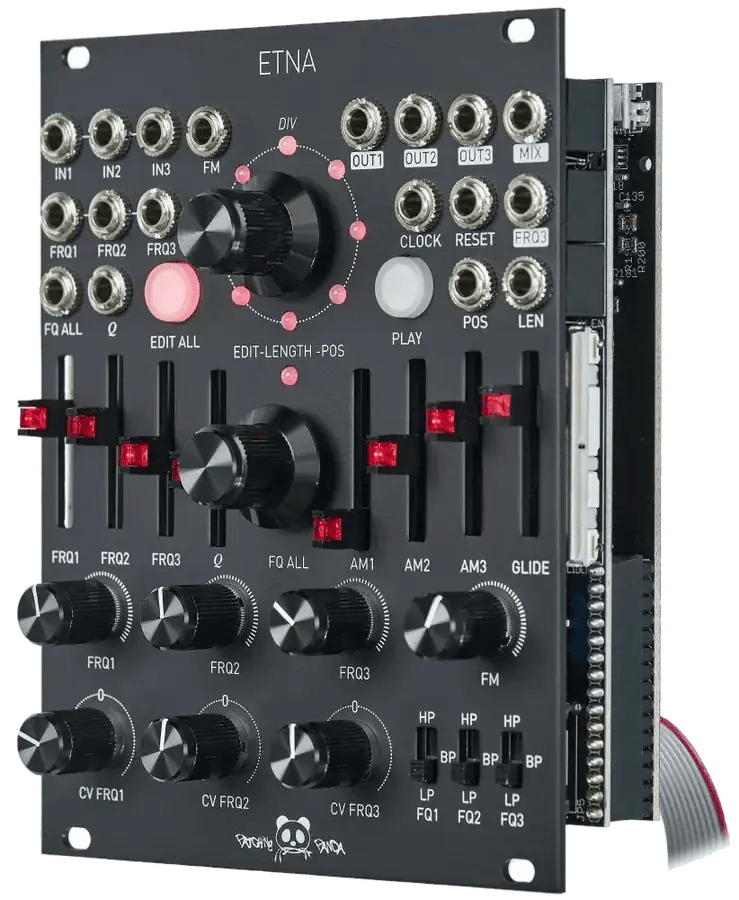

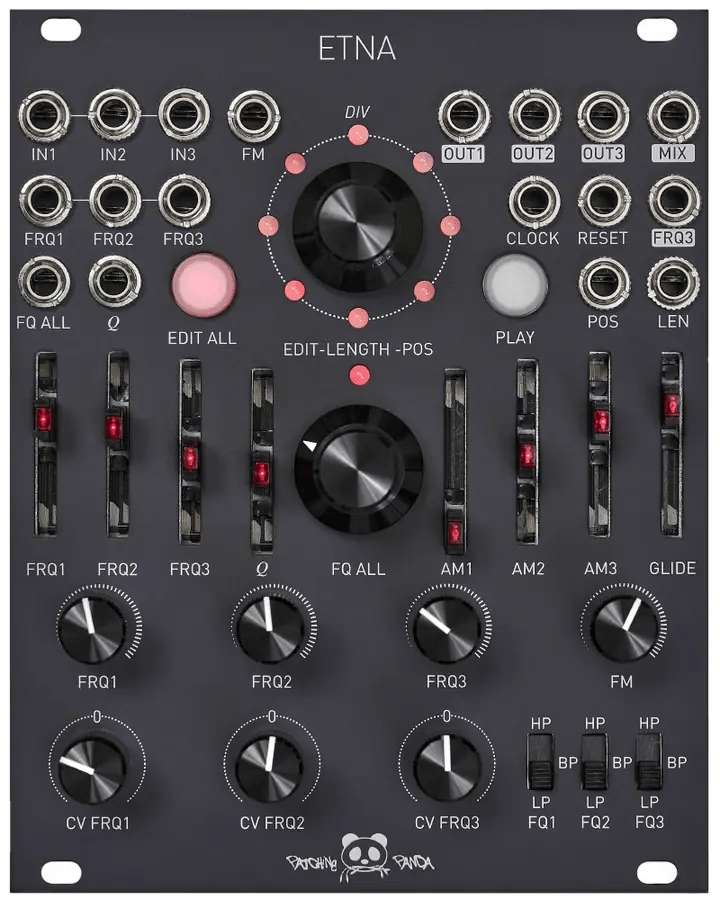

Etna

Etna is an advanced triple control analog multimode morphing filter, meticulously designed for precise and dynamic sound shaping. It allows for rapid or smooth transitions between diverse filter settings, known as snapshots.

Each snapshot comprehensively defines all of the filter’s parameters, which can be adjusted either swiftly or gradually. These transitions are controlled through an applied voltage or clock and triggers, with the flexibility to use up to eight distinct stages for creating complex filtering effects in a variety of audio applications.

In addition to its morphing capabilities, Etna incorporates analog controls that enable real-time, expressive modifications to the parameters of each saved snapshot. This enhancement not only enriches the morphing process but also provides a tactile, live experience that adds significant depth and nuance to the audio output, making it a powerful tool for both studio and live performance settings.





26/06/2024 Firmware V1.1

By holding down the ENCODER and pressing the EDIT button, you will be taken to the PRESETS menu. Select any of your own 8 presets to create your filter animations. Retrieve your patterns in real time synchronized with the clock. Press EDIT button to exit PRESETS menu.

The window size (active stages) is indicated by dimmed red LEDs, while the clocked LED appears more yellow.



20 HP
Power consumption 165mA@+12V, 88mA@-12V
