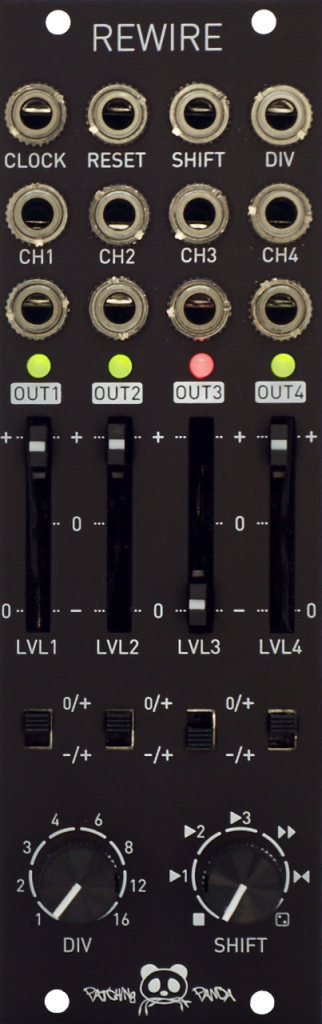

REWIRE is not only a 4×4 sequential switch but a signal router that lets you rewire your modular patch on the fly without ever touching a cable. Designed for dynamic signal flow, generative mayhem and performance precision, REWIRE gives you four inputs and four independent outputs, each with level control, switching logic and real time manipulation.
Whether you’re routing audio, CV, or triggers, REWIRE transforms your system into a living, shifting network of connections. Clocked, resettable, shiftable and divisible, this isn’t just a switch it’s a patch programmer, a performance brain and a creative playground in just 8HP.
Examples of use:
- Rotate four LFOs through four destinations for evolving modulation.
- Dynamically shift a melody between four voices.
- Create generative drum grooves by remapping triggers.
- Step an audio signal through four FX chains rhythmically.
- Use REWIRE as a manual preset bank with the faders alone.
SPECS:
Size: 8HP
Current draw: +12V: 170mA, -12V: 94mA, +5V: 0mA
Depth: 33mm
Input Impedance: 100kΩ
Output Impedance: 1kΩ
